34’ Frameless Half Round End Dump

Frameless Half Round End Dump

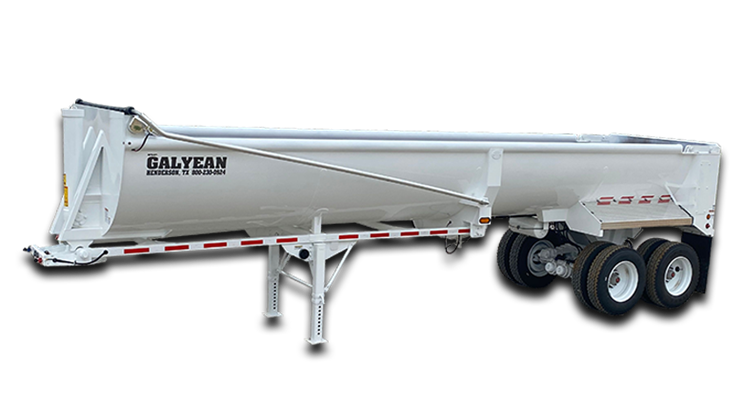

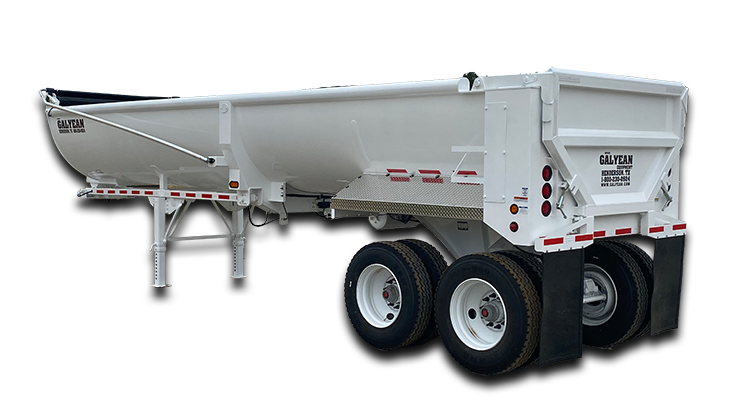

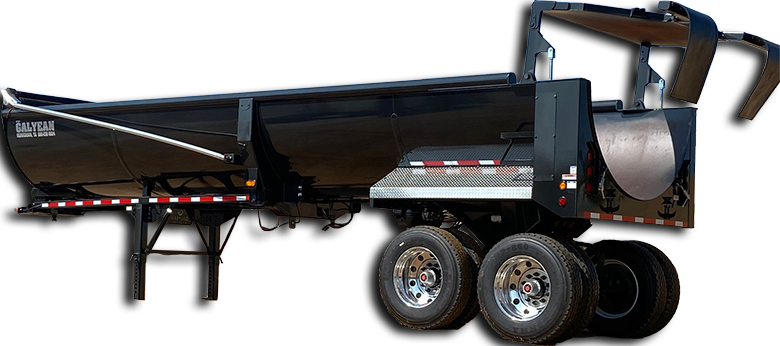

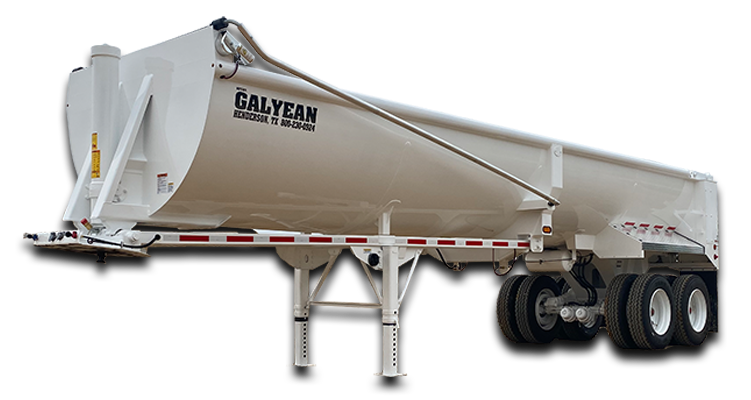

Galyean 34’ Half Round End Dump with 32’ Tub
All 8 Tires Stay on the Ground During Dumping Cycle

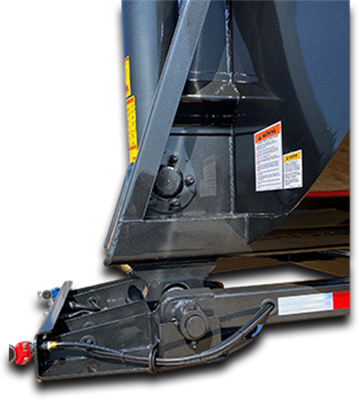

8” Trunnion Mount Hyva Hoist with 46 Degree Dump Angle
1/4” Hardox AR450 Wear Plate Shell
3/16” Hardox AR450 Wear Plate Nose and Lift Gate
1 Piece 5” Heavy Duty Rounded Top Rail

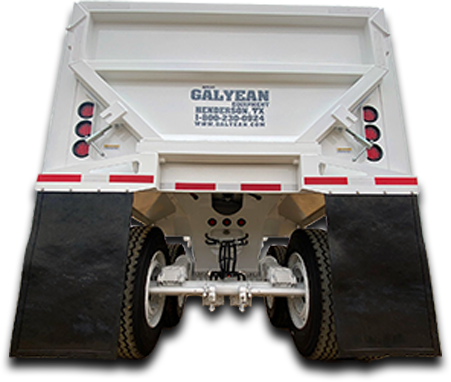

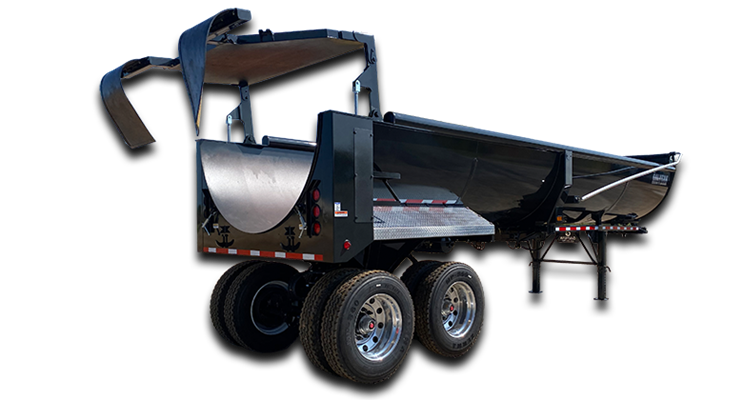

Combo Top Hinge and Hi-Lift Gate with Integrated Mud Flaps
Spring Loaded Air Latch for Locking Rear Combo Hi-Lift Gate
Rear Air Lift Gate Cylinders are Hidden in the Rear Post

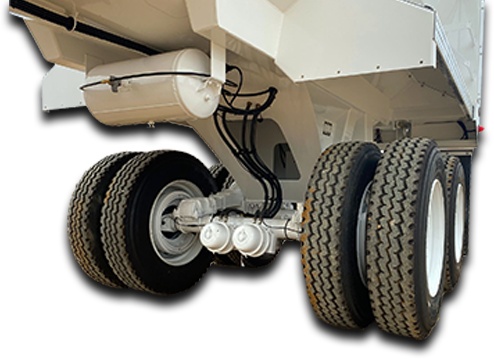

Heavy Duty 50K Single Point Watson Chalin Suspension
3/4” Wall 25k Axles – 1 ABS Standard

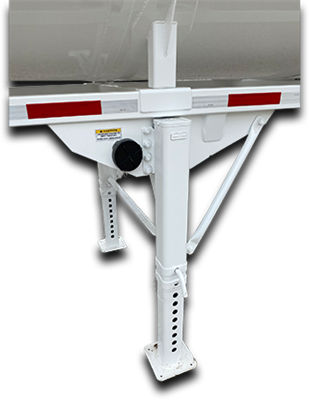

Drop Legs: 20K Capacity per Leg
11R24.5 Tires Mounted on White Steel Wheels

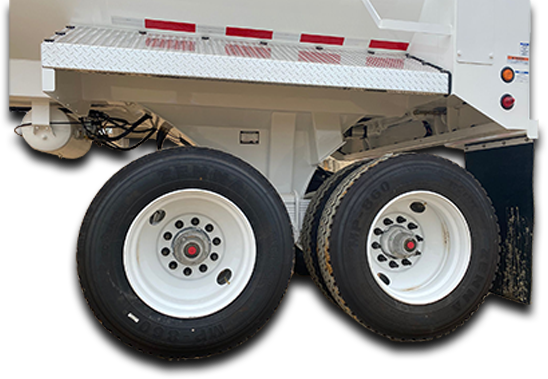

Rear Aluminum Diamond Plate Bolt-On Fenders
Full DOT Sealed LED Lights
All Exterior Surfaces Grit Blasted to Near White
Exterior Paint Coating Includes a Hi-Performance Acrylic Urethane Corrosion Inhibitive Base Coat followed by a High Gloss Clear Coat Finish
